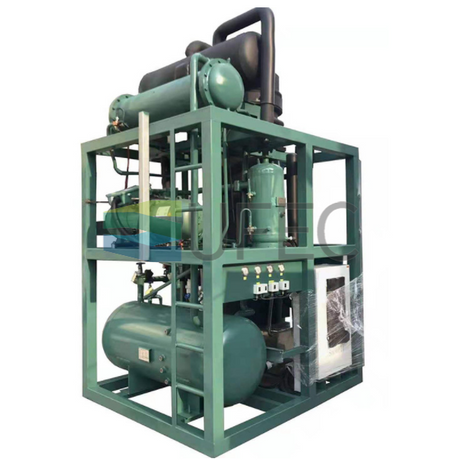

Tube ice machine is one kind of ice making machine. It is named for the regular cylindrical hollow Tube shape of the ice it produces. The name of the produced ice cube is Tube ice. The contact area is the smallest of the existing ice types in the market with the best melting resistance. It is suitable for drinks, decoration, food ice storage and so on, so it is mostly edible ice.
Tube Ice Machine Technical Parameters ：
Model | TIM-10T | TIM-15T | TIM-20T |
Ice Output | 10t/24hrs | 15t/24hrs | 20t/24hrs |
Ice Tube Diameter | φ29 | φ29 | φ29 |
Cooling Capacity | 82.2kw | 122.9kw | 140.9kw |
Input Power | 40.35kw | 56.6kw | 71.8kw |
Compressor Input Power | 32.6kw | 45.9kw | 59.9kw |
Ice Cut Reducer Input Power | 0.75kw | 1.5kw | 1.5kw |
Water Pump Input | 1.5kw | 2.2kw | 2.2kw |
Ice Machine Weight | 2750kg | 4000kg | 4800kg |
Ice Machine Diameter(mm) | 2600*1700*3200 | 2400*1800*2050 | 2500*1900*2200 |
Weight Of Cooling Tower | Φ1880*2120 | Φ2100*2510 | Φ2100*2510 |
